Sending Email from SQL Server

I have a project that requires me to send contracts that are stored in SQL Server to customers and I started poking around for the best way to do it.  First, I found a quick code snippet that sends an email using sp_send_dbmail:

 EXEC msdb.dbo.sp_send_dbmail
 @recipients = 'lsmithmier@productiveedge.com',
 @body = 'Just testing the mail',
 @subject = 'Sending Mail using Database Mail' ;

When I first ran it on my database server (SQL Server 2008 R2) I got the following error:

Msg 15281, Level 16, State 1, Procedure sp_send_dbmail, Line 0
 SQL Server blocked access to procedure 'dbo.sp_send_dbmail' of component
 'Database Mail XPs' because this component is turned off as part of the
 security configuration for this server. A system administrator can enable the
 use of 'Database Mail XPs' by using sp_configure. For more information about
 enabling 'Database Mail XPs', see "Surface Area Configuration"
 in SQL Server Books Online.

So I cranked up Microsoft SQL Server Management Studio and set email up:

1.  Open up the Management section and right click on the Database Mail item:

2.  Choose Configure Database Mail

3.  Click Next

4.  Click Next

5.  Click Yes

6.  Set the Profile name and choose Add an SMTP account:

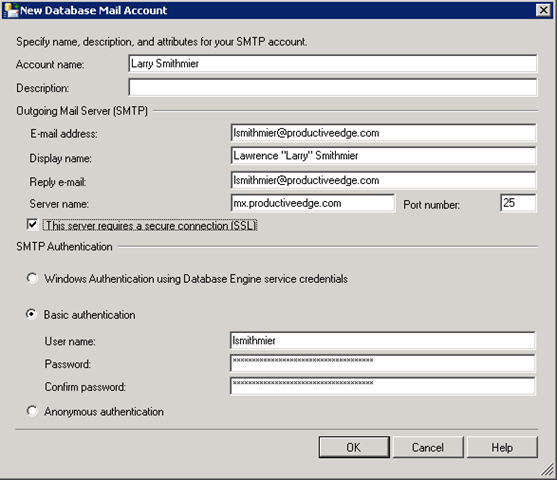

7.  Enter your settings:

8.  Set the profile as both Public and Default:

9.  Click Next

10. Click Finish

11. Click Close

and it is all setup!  Really easy compared to the old way of setting email up with SQL Server.  Then I re-ran the query and got the following response:

Mail queued.

But then what?  I ran a quick query and found that the email wasn’t sent correctly:

 use [msdb]
 SELECT *
 FROM sysmail_mailitems
 GO
 SELECT *
 FROM sysmail_log
 GO

so I looked back over my settings and updated the port number to hit the outgoing relay and everything started working!
